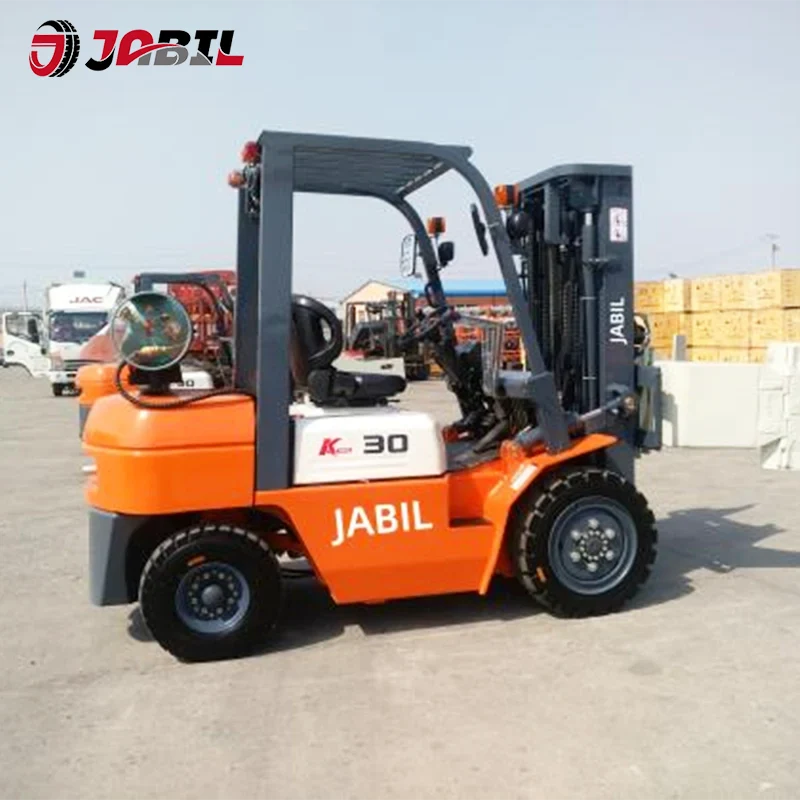

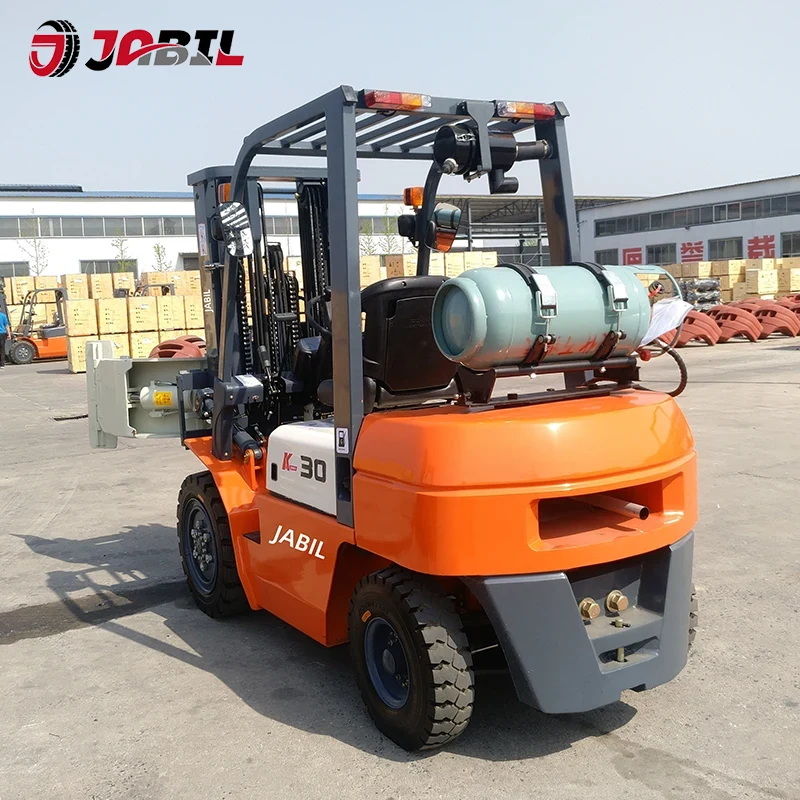

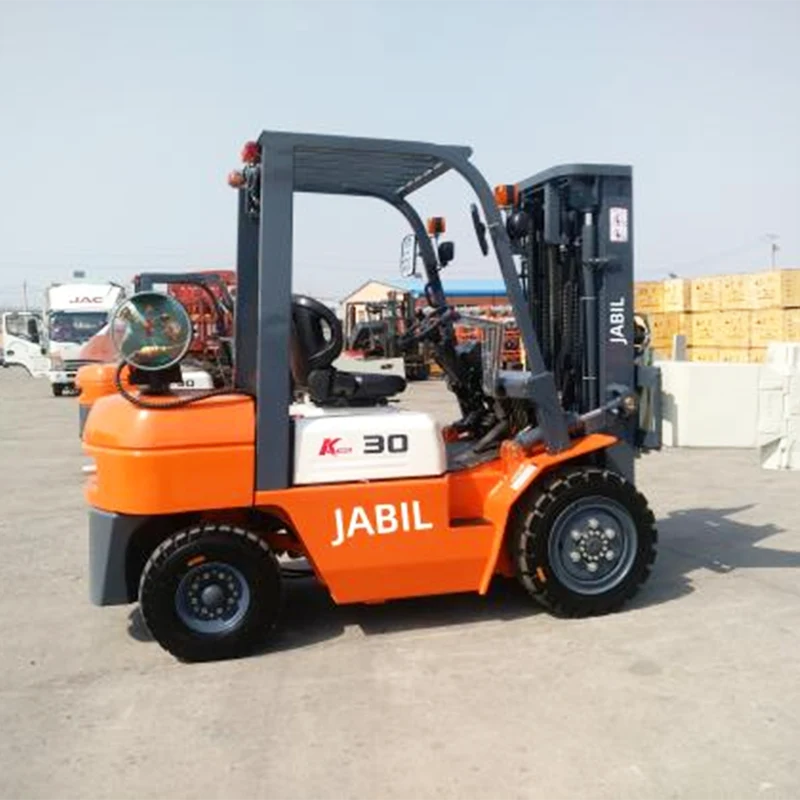

Gasoline and LPG Forklift Trucks

Min.Order: 1 piece
JABIL Forklift proudly presents our premium Gasoline and LPG Forklift Trucks, engineered to deliver exceptional performance in diverse material handling applications. As an ISO-certified manufacturer, we combine rigorous quality control with competitive pricing to offer superior alternatives to traditional diesel models. Our Gasoline & LPG Forklift Trucks feature the same reliable configurations as leading brands like Heli and Hangcha, but with significant cost advantages.

Send Inquiry

Product Description

The dual-fuel capability of our Gasoline and LPG Forklift Trucks provides unmatched operational flexibility, allowing seamless switching between fuel types based on availability and cost considerations. This innovative design, coupled with our factory-direct pricing model, makes JABIL the smart choice for businesses seeking high-performance material handling solutions.

Product Parameter(Specification)

4-5T Internal Combustion Forklift
Specification			CPC40	CPCB40	CPCK50	CPCE50	CPCD50	CPCB50
1	Fuel model		DIESEL	DIESEL	DIESEL	DIESEL	DIESEL	DIESEL
2	Load capacity	kg	4000	4000	5000	5000	5000	5000
3	Load center	mm	500	500	500	500	500	600
4	Lift height	mm	3000	3000	3000	3000	3000	3000
5	Full free lift height	mm	0	0	0	0	0	200
6	Fork dimension	mm	1070×150×45	1220×150×45	1070×150×50	1070×150×50	1070×150*50	1220×150×55
7	Most tilting angle	Deg.	6/12	602	6/12	6/12	6/12	6/12
8	Min.turning radius	mm	2800	2700	2680	3150	3050	3250
9	Groud dearance	mm	135	140	135	140	140	200
10	Overhead guard height	mm	2230	2180	2210	2180	2290	2450
1	Front overhang	mm	500	550	495	550	570	590
12	Max.travel speed	km/h	18.5	21	22	21	25	29
13	Max.lift speed	mms	420	360	330	360	430	550
14	Max.troction power	KN	20	8	18.5	18	23	54
15	Max.grodeability	%	20	20	20	20	8	35
16	Total length with fork	mm	4105	4220	4195	4520	4520	4660
17	Total length without fork	mm	3035	3000	2975	3300	3300	3440
18	Total width	mm	1400	1400	1580	1400	1480	1995
19	Most extended height	mm	4270	4265	4250	4265	4300	4400
20	Most lowered height	mm	2190	2180	2185	2180	2190	2500
21	Tyres Front		250-15-12PR	250-15-12PR	300-15-18PR	250-15-12PR	300-15-20PR	8.25-15-14PR
22	Tyres Rear		7.00-12-12PR	700-12-12PR	700-12-10PR	700-12-12PR	700-12-12PR	8.25-15-14PR
23	Wheelbase	mm	1900	1850	1960	2250	2200	2250
24	Tread	mm	1160/1065	1130/1100	1000/970	1130/100	1180/1190	1470/1700
25	Service weight	Kg	5300	5650	5300	5900	6900	7980
26	Battery	V/Ah	12/100	12/80	12/80	12/80	12/80×2	12/80×2
27	Engine model		XINCHAI 4D30G5	4D30ZG31	XINCHAI 4D32G31	XINCHAI 4D32G31	XINCHAI 4D35	XINCHAI 4DF3
28	Engine power	kw/r.pum	36.B	36.8	48	48	60	85
29	Transmission		Mechoniol Hydroulic	Mechoricdl Hydroulic	Mechanicoll Hydraulic	Hyctroulic	Mechonicll Hydrouli	Hydraulic
30	Wock pressure	Mpa	18.5	18.5	18.5	20	18.5	20

Product Feature and Application

Ideal Applications

Warehouse Operations:

Clean LPG mode for indoor use with minimal emissions.

Retail Distribution:

Quick fuel switching for uninterrupted operation.

Manufacturing Plants:

Powerful performance for heavy load handling.

Food Processing:

LPG operation maintains hygienic environments.
