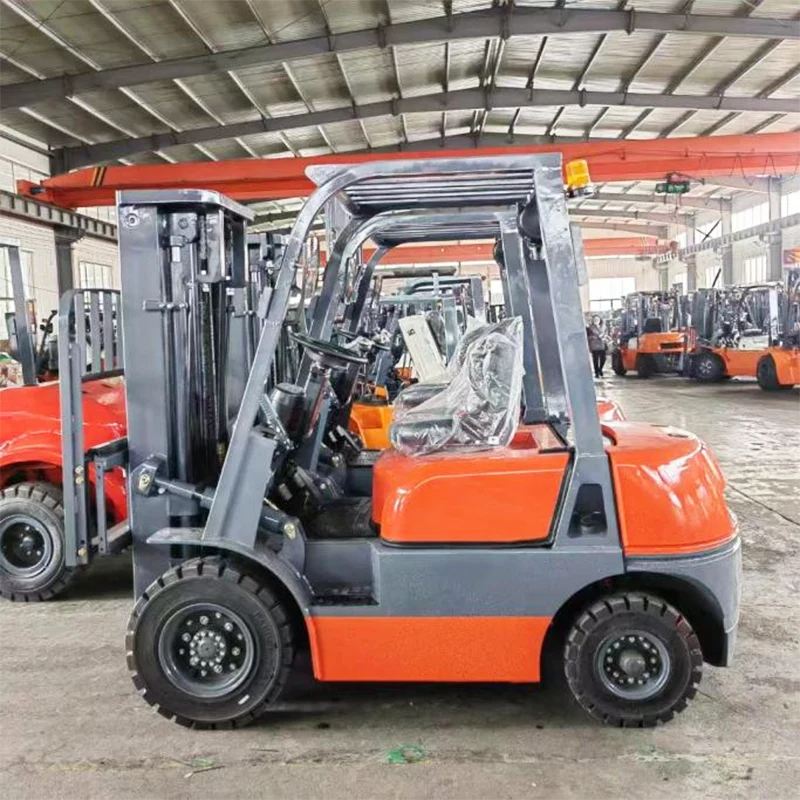

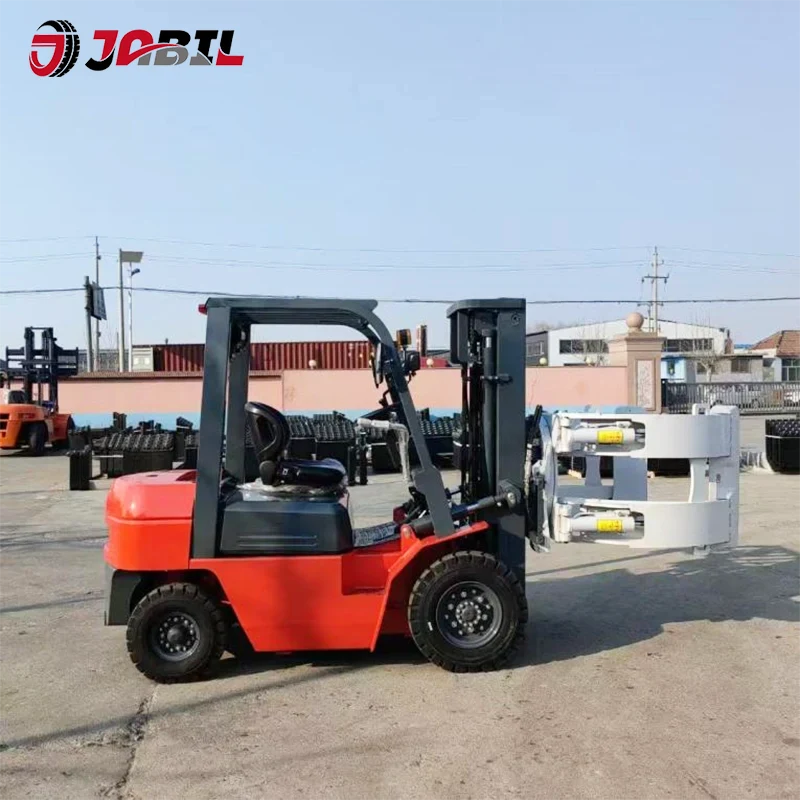

Diesel Forklift Trucks

Min.Order: 1 piece
JABIL diesel forklift trucks takes pride in manufacturing diesel forklifts that combine rugged durability with refined craftsmanship. Every JABIL diesel forklift meets stringent international manufacturing standards and quality control certifications, ensuring reliable performance in the most demanding industrial environments.

Send Inquiry

Product Description

While offering the same robust configurations and engine performance as leading Chinese brands like Heli and Hangcha, JABIL diesel forklift trucks provide superior cost-efficiency - delivering comparable power and lifting capacity at more competitive price points. Our factory-direct production model eliminates middleman markups, allowing us to offer premium quality diesel forklifts without the premium brand price tag.

Product Parameter(Specification)

1.5-3.5T Internal Combustion Forklift
Specification			CPC15	CPC20	CPC25	CPC30	CPC35
1	Fuel model		DIESEL	DIESEL	DIESEL	DIESEL	DIESEL
2	Load capacity	kg	1500	2000	2500	3000	3500
3	Load center	mm	500	500	500	500	500
4	Lift height	mm	3000	3000	3000	3000	3000
5	Full free lift height	mm	100	100	100	100	100
6	Fork dimension	mm	920×100×35	1070×122×40	1070×122×40	1070×125×45	1070×125×50
7	Most tilting angle	Deg.	6/12	6/12	6/12	6/12	6/12
8	Min.turning radius	mm	1955	2220	2240	2400	2550
9	Groud dearance	mm	10	120	120	135	135
10	Overhead guard height	mm	2040	2140	2140	2165	2165
11	Front overhang	mm	425	448	485	495	495
12	Max.travel speed	km/h	13.5	19	19	19	19
13	Max.lift speed	mm/s	590	550	550	480	480
14	Max.troction power	KN	12.3	12.3	12.3	13.5	13.5
15	Max.grodeability	%	20	20	20	20	20
16	Total length with fork	mm	3175	3523	3610	3820	4065
17	Total length without fork	mm	2255	2453	2540	2750	2995
18	Total width	mm	1070	160	160	1225	1225
19	Most extended height	mm	4030	4220	4220	4265	4265
20	Most lowered height	mm	1995	2060	2060	2060	2060
21	Tyres Front		6.50-10-10PR	7.00-12-12PR	7.00-12-12PR	28x9-15-12PR	28x9-15-12PR
22	Tyres Rear		5.00-8-8PR	6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR
23	Wheelbase	mm	1410	1600	1600	1700	1700
24	Tread	mm	890/920	970/970	970/970	1000/970	1000/970
25	Service weight	Kg	2660	3200	3800	4350	4560
26	Battery	V/Ah	12/80	12/80	12/80	12/80	12/80
27	Engine model		XINCHAI 4D27G31	XINCHAI 4D27G31	XINCHAI 4D27G31	XINCHAI 4D27G31	XINCHAI 4D27G31
28	Engine power	kw/r.p.m	32	36.8	36.8	36.8	36.8
29	Transmission		Mechanical/ Hydraulic	Mechanical/ Hydraulic	Mechanical/ Hydraulic	Mechanical/ Hydraulic	Mechanical/ Hydraulic
30	Work pressure	Mpa	18.5	18.5	18.5	18.5	18.5

*There may be minor differences between the product and the pictures and parameters in the brochure as the products are kept improving.

Product Feature and Application

Ideal Applications

Port Operations:

Excellent for container handling and outdoor yard work in all weather conditions.

Construction Sites:

Powerful torque and rugged tires handle uneven terrain with ease.

Heavy Manufacturing:

Reliable performance for steel, lumber, and machinery handling.

Agriculture:

Dependable operation for feed mills and farm equipment logistics.
