Electric Forklift Trucks

Min.Order: 1 piece
JABIL specializes in delivering premium, eco-friendly material handling solutions for diverse industrial applications. We offer high-quality Electric Forklift Trucks at competitive wholesale prices, making us the preferred choice for warehouses, distribution centers, and manufacturing facilities worldwide.

Send Inquiry

Product Description

Our state-of-the-art production facilities utilize cutting-edge automation and rigorous quality control processes to ensure every Electric Forklift Truck meets the highest industry standards. Designed to replace traditional IC engine forklifts, our products deliver zero emissions, lower operating costs, and superior maneuverability – perfect for indoor operations where air quality and noise reduction are critical. Partner with us for customized Electric Forklift Trucks solutions, backed by fast lead times, bulk order discounts, and exceptional after-sales support.

Product Parameter(Specification)

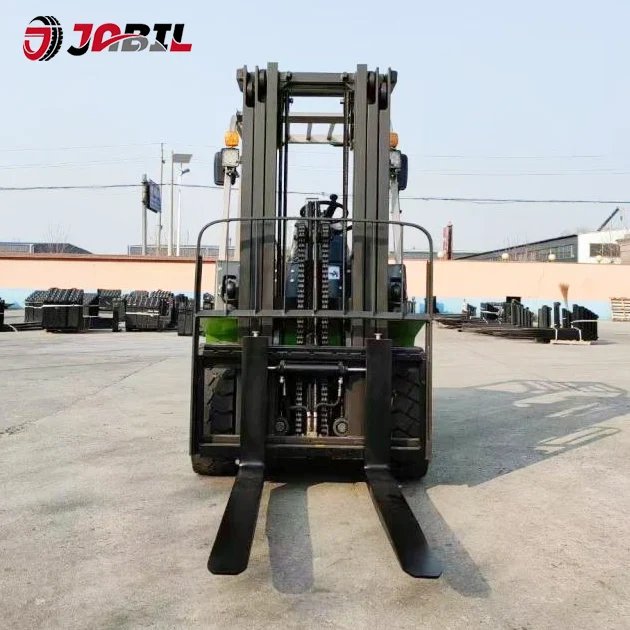

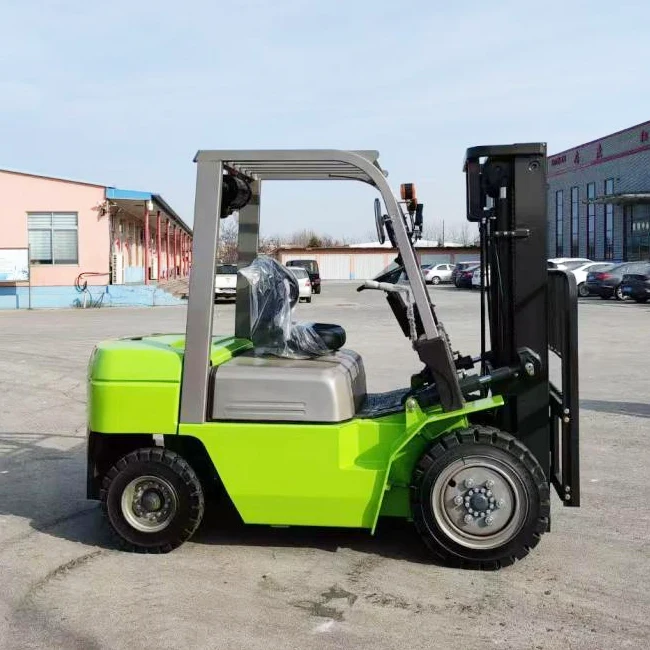

Electric Forklift
Specification					FB15	FB18	FB20	FB25	FB30	FB35
1	Characteristics	Fuel model			Battery	Battery	Battery	Battery	Battery	Battery
2		Load capacity		kg	1500	1800	2000	2500	3000	3500
3		Load center		mm	500	500	500	500	500	500
4		Lift height		mm	3000	3000	3000	3000	3000	3000
5		Full free lift height		mm	135	135	145	145	145	145
6		Fork dimension		mm	920×100×40	920×100×40	1070×122×40	1070×122×40	1070×125×45	1070×25×45
7		Most tilting angle	F/R	Deg.	6/12	6/12	6/12	6/12	6/12	6/12
8		Min.turning radius		mm	1850	1850	2090	2090	2150	2190
9		Min.with of right angle stocking channel		mm	3520	3520	3760	3760	4420	4420
10		Min.width of right angle channel		mm	830	1830	1990	1990	2030	2050
11		Groud dearance		mm	100	100	10	110	120	120
12		Overhead guard height		mm	2100	2100	2150	2150	2170	2170
13		Overhead guard to seat		mm	1005	1005	1005	1005	1005	1005
14		Front overhang		mm	405	405	470	470	475	490
15	Performance	Max.travel speed	Full load	km/h	11	11	12	12	12.5	12.5
16		Max.lift speed	Full load	mm/s	270	270	280	270	280	290
17		Max.traction power		%	20%
18	Dimensions	Total length	without fork	mm	2230	2230	2310	2310	2511	2650
19		Total width		mm	1030	1030	150	1150	1225	1225
20		Mast Extended Height		mm	5860	3860	4030	4030	4264	4264
21		Mast Lowered Height		mm	1955	1955	1990	1990	2055	2055
22	Dimensions	Tyres	Front		6.50-10-10PR	6.50-10-10PR	7.00-12-12PR	7.00-12-12PR	28×91512PR	28×9-15-12PR
23		Tyres	Rear		5.00-8-10PR	5.00-8-10PR	18×7-8-14PR	18×7-8-14PR	18×7-8-14PR	18×7-8-14PR
24		Wheelbase		mm	1250	1250	1450	1450	1600	1720
25		Tread	F/R	mm	890/920	890/920	960/950	960/950	1000/980	1000/980
26		Service weight		kg	2990	3110	3800	4100	5050	5320
27		Acid battery		V/Ah	48/300	48/300	48/500	48/500	80/500	80/500
28		Motor	Travel	KW	8	8	1	1	16.6	16.6
29		Motor	Lift	KW	10	10	12	12	13.5	13.5
30		Controller			FANJI	FANJI	FANJI	FANJI	FANJI	FANJI
31		Control type			AC	AC	AC	AC	AC	AC
32		Operating pressure		Mpa	17.5	17.5	17.5	17.5	17.5	17.5

*There may be minor differences between the product and the pictures and parameters in the brochure as the products are kept improving.

Product Feature and Application

Application Scenarios

Warehousing & Logistics:

Ideal for narrow-aisle operations with compact designs and tight turning radii.

Food & Beverage Industry:

Zero emissions and quiet operation make them perfect for cold storage and hygienic environments.

Retail & E-commerce:

Efficiently handle high-volume order fulfillment with fast acceleration and smooth operation.
