Excavator and Trencher Tires

Min.Order: 10 Pcs
In the field of construction machinery tires, JABIL's excavator and trencher tires specially designed for excavators and trenchers have super strong load-bearing capacity and can withstand the heavy loads of arduous excavation and loading operations; their excellent wear resistance allows them to cope with the severe tests of complex ground; good flexibility ensures stable work in different temperature environments. JABIL always adheres to a strict quality control system, and each tire goes through multiple precise inspection processes from raw material screening to finished product factory shipment to ensure that every tire meets international top standards.

Send Inquiry

Product Description

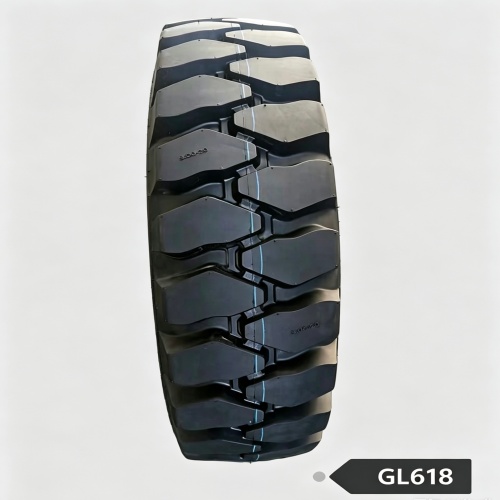

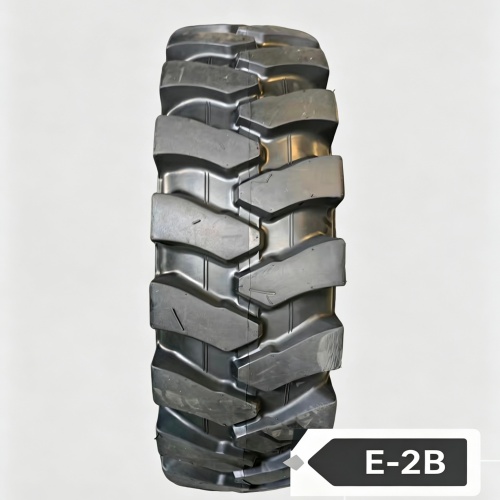

The outstanding highlights of JABIL excavator and trencher tires lie in their excellent wear and cut resistance. The specially designed tread patterns, with deepened and widened tread blocks combined with a reasonable layout of tread grooves, not only increase the friction between the tire and the ground to enhance grip but also effectively prevent sharp stones, metal debris, and other objects from scratching or piercing the tread, thereby extending the tire's service life. On construction sites with complex ground surfaces filled with debris such as gravel and steel bars, JABIL tires can calmly handle the challenges, reducing downtime caused by tire damage and ensuring the smooth progress of projects.

Whether for trench digging in wetland areas or excavation work on rugged mountain terrains, JABIL tires can provide reliable mobility support for excavators and trenchers, meeting the high-intensity operation requirements in different scenarios.

Product Parameter(Specification)

Size	PR	Pattern Number	Stand Rim	Tire Inflated Dimension		Load at different speeds		Inflation pressure at different speeds		Type
				(mm)		KG		Kpa
				Section Width	Overall Diameter	10km/h	50km/h	10km/h	50km/h
9.00-20	14	E-3/L-3	7.00	255	1015	4375	/	725	/	TT
9.00-20	16	E-3/L-3	7.00	255	1015	4750	/	825	/	TT
10.00-20	16	E-3/L-3	7.50	275	1015	3000	/	725	/	TT
10.00-20	18	E-3/L-3	7.50	275	1015	4950	/	825	/	TT
400/60-15.5	18	G2	13.00	430	820	4000	/	583	/	TT

Product Feature And Application

Product Feature

✔

Extra deep tread provides longer life and puncture resistance.

✔

Excellent abrasion and traction and self-cleaning.

✔

The strong casing providing extra-ordinary resistance to impacts and shocks even in heavy-duty operations.

Application

Developed for urban excavator and industrial trailer vehicles, trencher and other construction machinery vehicles
