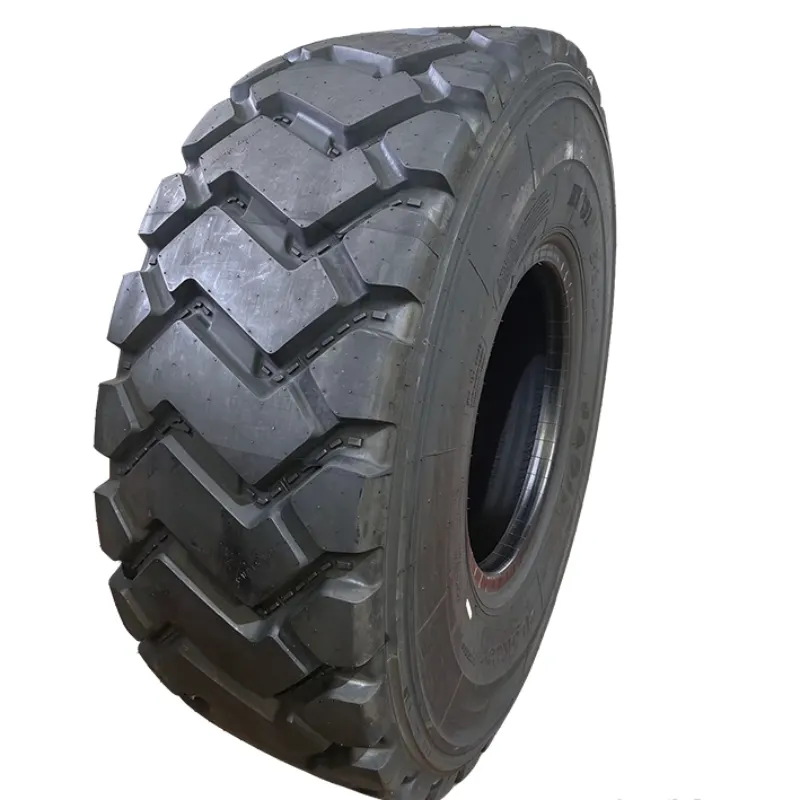

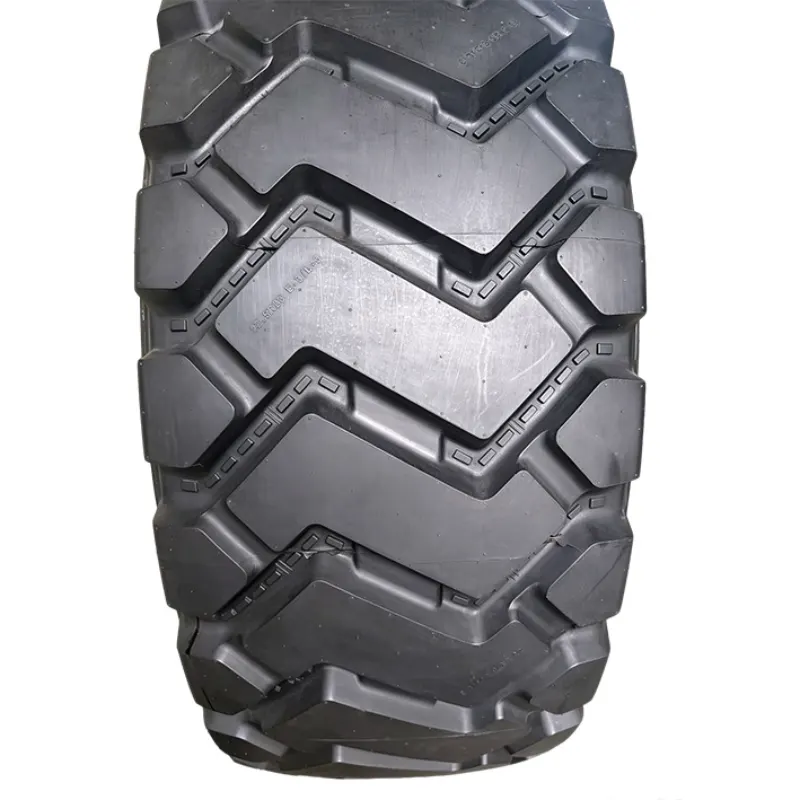

E3/L3 Radial OTR Tire

As a trusted China OTR tyre manufacturer and exporter, JABIL presents the E3/L3 Radial OTR Tire (HRE31 pattern)—suitable for wheel loaders, dozers, dump trucks, and earthmoving machinery operating in construction, stockpiling, and mining. Built with a heavy-duty reinforced casing and advanced wear-resistant compound, these tyres deliver outstanding traction, stability, and high puncture resistance in harsh, abrasive conditions.

Send Inquiry

Product Description

JABIL E3/L3 Radial OTR Tires are designed for the Dump-Truck/Wheel Loaders/ Dozers / Earthmover etc. operating in construction, stockpile handling and general earthmoving applications. The range currently covers 17.5R25, 20.5R25, 23.5R25, 26.5R25 and 29.5R25, subject to final technical confirmation. Buyers can review the available patterns, construction type, star rating, weight, loading reference and application guidance below, then request the corresponding load and speed data for their operating conditions.

Technical specifications

Size	Pattern	Type	Star	Weight kg	40'HQ pcs	Std rim	OD / SW mm	Load at speed 50km/h	Pressure km/h	Load Index
17.5R25	HRE31	TT/TL	★★	153	96	14.00/1.5	1348 / 445	5450	525	167B/182A2

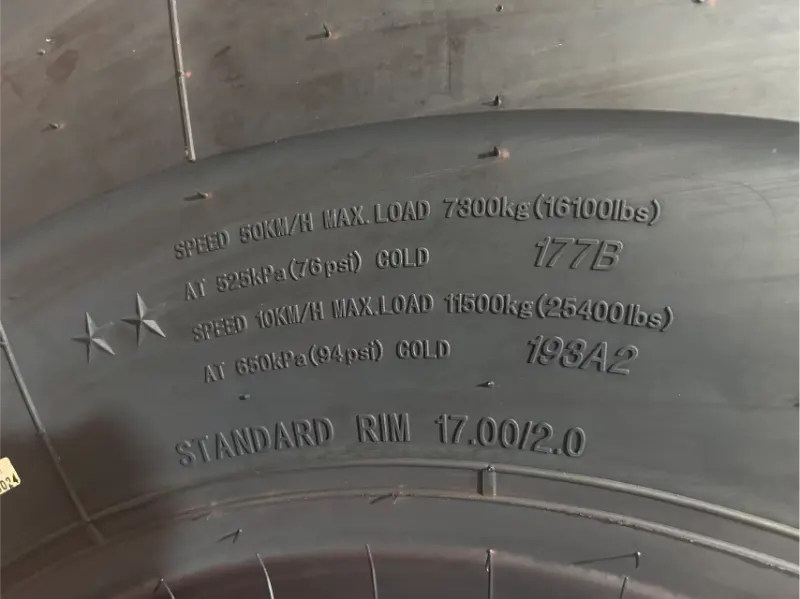

20.5R25	HRE31	TT/TL	★★	231	64	17.00/2.0	1493 / 521	7300	525	177B/193A2
23.5R25	HRE31	TT/TL	★★	313	48	19.50/2.5	1617 / 597	9250	525	185B/201A2
26.5R25	HRE31	TT/TL	★★	434	35	22.00/3.0	1750 / 673	11500	525	193B/209A2
29.5R25	HRE31	TT/TL	★★	568	25	25.00/3.5	1874 / 749	14000	525	200B/216A2

Product detail

Attribute	Content

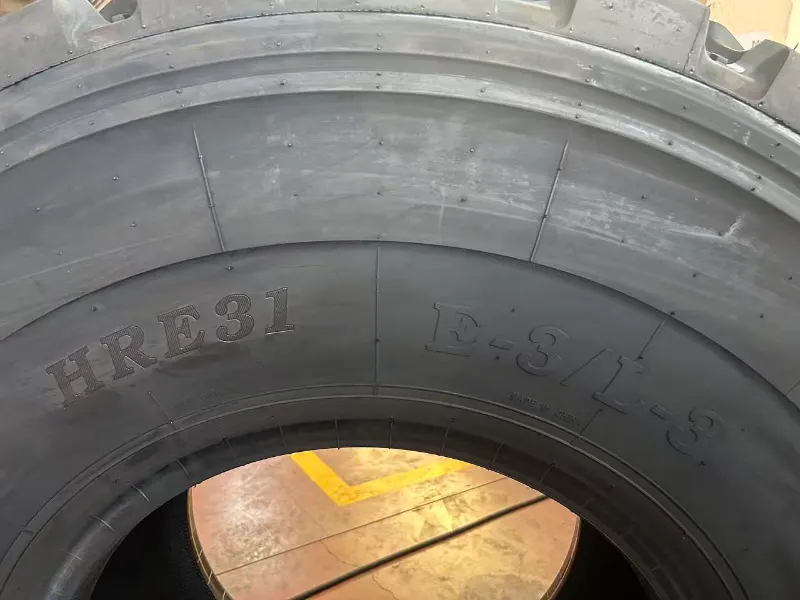

Product family	E-3/L-3 radial OTR tyre
Primary equipment	the Dump-Truck/Wheel Loaders/Dozers/Earthmover etc.

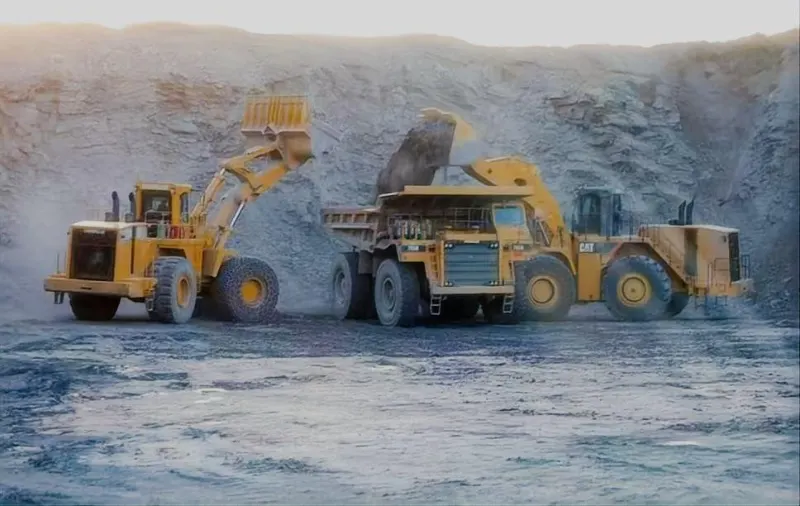

Typical applications	Construction, stockpile handling, loading and general earthmoving
Construction	All-steel radial casing
Tread description	Better reinforced design provides more beneficial resistance topuncture, scratch and other properties in the worse working area.
Compound description	Special formula for excellent wear resistance effectively improves the tyre service life.

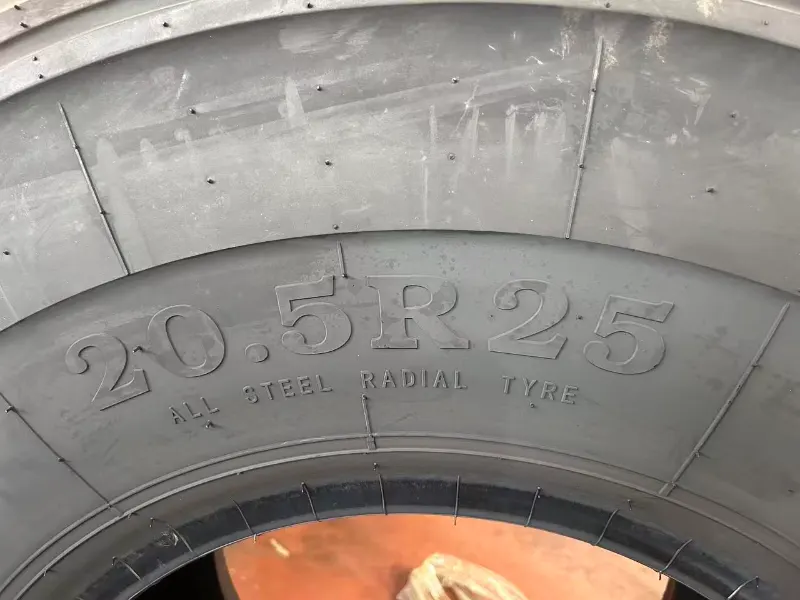

Available sizes	17.5R25, 20.5R25, 23.5R25, 26.5R25 and 29.5R25
Commercial status	[MOQ:4 PCS / PRODUCTION STATUS : NORMAL/ LEAD TIME :10-15 DAYS FOR ONE CONTAINER]

Product features with evidence controls

Feature heading	Permitted framework wording	Evidence required before stronger claim
Radial construction	Radial construction is intended to support casing flexibility and heat management under the approved operating conditions.	Approved construction specification and technical review
Tread design	The tread layout is intended to provide traction and stability in the listed loader and dozer applications.	Pattern drawing, tread photograph and application approval
Wear resistance Cut resistance	Compound and tread depth details: Better reinforced design Special formula	Factory technical statement or test report

Excellent traction performance, holding force and excellently stable controllability.

Better reinforced design provides more beneficial resistance to puncture, scratch and other properties in the worse working area.

Special formula for excellent wear resistance effectively improves the tyre service life.

Selection guidance

Use this section to help you decide whether the E3/L3 Radial OTR Tire fits the job. Keep the wording factual and conditional.

· Confirm the equipment model, tyre size, standard rim and actual operating load.

· Record the work cycle, travel distance, maximum speed, operating hours and ambient temperature.

· Describe the surface: compacted soil, loose material, abrasive rock, sharp rock or mixed conditions.

· Confirm whether the priority is traction, cut resistance, heat control, ride comfort or cost per operating hour.

· Request JABIL technical confirmation before use in severe quarry, high-speed, high-temperature or overload conditions.

Real project experience

A mixed Radial OTR tyre order for an Afghanistan mining-sector buyer included a 20.5R25 E3/L3 HRE31 specification. The order process involved written confirmation of the final sizes and patterns, signed commercial documents, production-progress photos and videos, and an option for third-party inspection before shipment.
