Agricultural Machinery Wheels

Min.Order: 20 Pcs

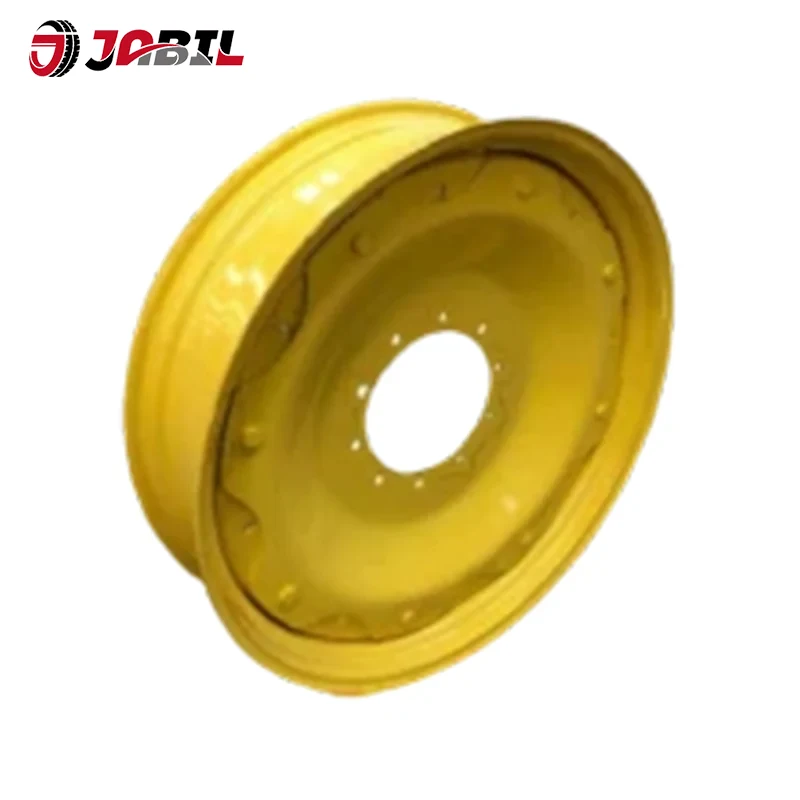

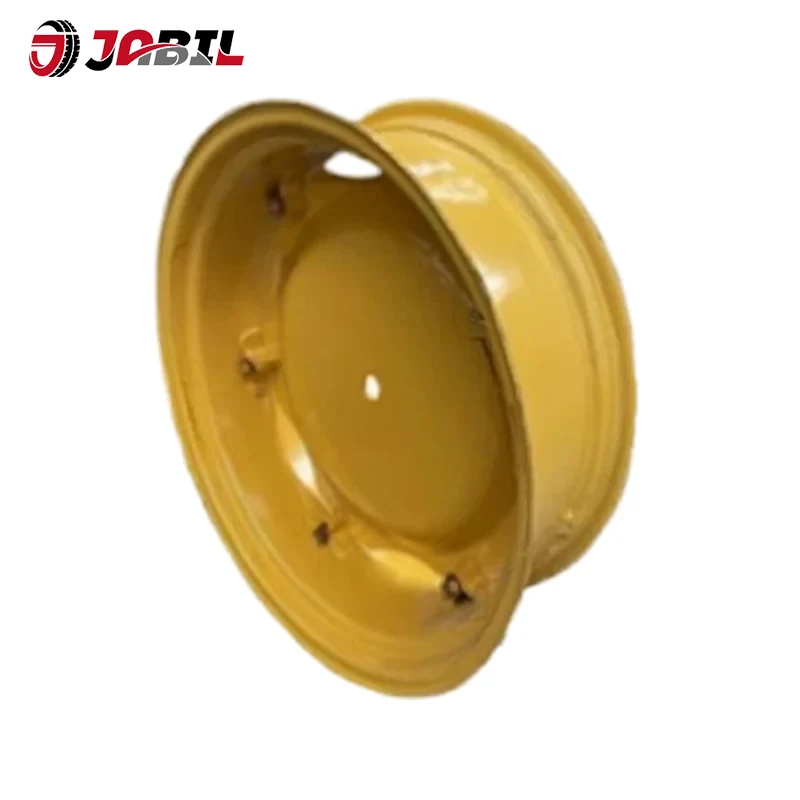

JABIL's agricultural machinery wheels are engineered with precision to withstand the harsh conditions of the farm. We use a unique blend of high - strength alloy steel and advanced composite materials. The alloy steel provides excellent toughness and load - bearing capacity, allowing our wheels to handle heavy loads without deformation. The composite materials, on the other hand, are used to enhance the wheel's resistance to corrosion and abrasion. This is crucial in agricultural settings where wheels are constantly exposed to soil, moisture, and chemicals.

Send Inquiry

Product Description

The combination of these materials also results in a lighter - weight wheel, which improves the fuel efficiency of the machinery. Our agricultural machinery wheels are designed with an optimized tread pattern that offers superior traction on various terrains, including muddy fields, sandy soils, and uneven ground. This ensures that your agricultural machinery can operate smoothly and efficiently, even in the most challenging conditions. Additionally, JABIL offers a variety of wheel sizes and configurations to fit different types of agricultural machinery, such as tractors, combines, and cultivators.

Product Parameter(Specification)

Agrieultural Machinery Wheel
Tractor Series
Rim Size	Tyre Size	CBD (mm)	PCD (mm)	Holes Number*Diameter	Applicable vehicle type
4.00E*16	5.00-16	96	140	5*15	Tractor and plant protection spraying equipment
4.5E*16	6.50-16	102	161	6*17
5.50F*16	7.50-16	117.7	152	6*19
WB*16	9.5-16	102	161	6*17
W7*20	8.3-20	152.4	203.2	8*17
W7*24	8.3-24	152.4	203.2	8*17.5
WB*24	9.5-24	152.4	203.2	8*17.5
W10*24	11.2-24	221	275	8*21
W11*24	12.4-24	221	275	8*21
W12*24	13.6-24	290.5	330	8*17
W13*24	14.9-24	152.4	203.2	8*19
W11*26	12.4-26	290.5	330	8*17
W13*26	14.9-26	290.5	330	8*17
W10*2B	11.2-2B	221	275	8*21
W11*2B	12.4-2B	152.4	203.2	8*17
W12*2B	13.6-2B	152.4	203.2	8*17
W13*2B	14.9-2B	281	335	10*23
W15*2B	16.9-2B	2B1	335	10*23
W12*30	13.6-30	152.4	203.2	8*17
W15*30	16.9-30	152.4	203.2	8*19
W16*30	18.4-30	152.4	203.2	8*19
WB*32	9.5-32	161	205	6*21.5
W10*32	11.2-32	221	275	8*23.5
W11*32	12.4-32	152.4	203.2	8*19
W15*34	16.9-34	152.4	203.2	8*21.5
W10*3B	11.2-38	220.8	275	8*22
W11*3B	12.4-38	152.4	203.2	8*21.5
W12*3B	13.6-38	152.4	203.2	8*21.5
W14*3B	15.5-3B	152.4	203.2	8*21.5
W15*3B	16.9-38	281	335	10*26
W16*3B	18.4-38	221	275	8*21
W18*3B	20.8-38	281	335	10*26
WB*42	9.5-42	161	205	6*21.5
W15*42	16.9-42	152.4	203.2	8*19
W16*42	184-42	281	335	10*24
W18*42	20.8-42	281	335	10*26
DW20*42	23.1-42	152.4	203.2	8*21.5
WB*4B	9.5-48	150.1	203.2	8*19
W10*48	12.4-48	221	275	8*22
W12*48	14.9-48	222	275	8*22
W10*54	12.4-54	2B2	335	10*24

Product Feature and Application

Product Feature: Lighter, Stronger, More Eco-Friendly

✔

Lighter

The wheel structure adopts a brand-new digitally modular design, achieving product light weighting.

✔

Stronger

Utilizes new high-strength, lightweight steel plates and a unique vent hole reinforcement rib design to increase the strength of the wheel disc and reduce vent hole cracking. Intelligent welding technology effectively enhances the load-bearing capacity of the lightweight wheel and extends its service life.

✔

More Eco-Friendly

Improves fuel efficiency and reduces exhaust emissions. Generally, for every 100kg reduction in vehicle weight, CO2 emissions decrease by 5g/km; for every 10% reduction in overall vehicle weight, fuel consumption can be lowered by 5%-8%.

Application

Agricultural Machinery Wheel
